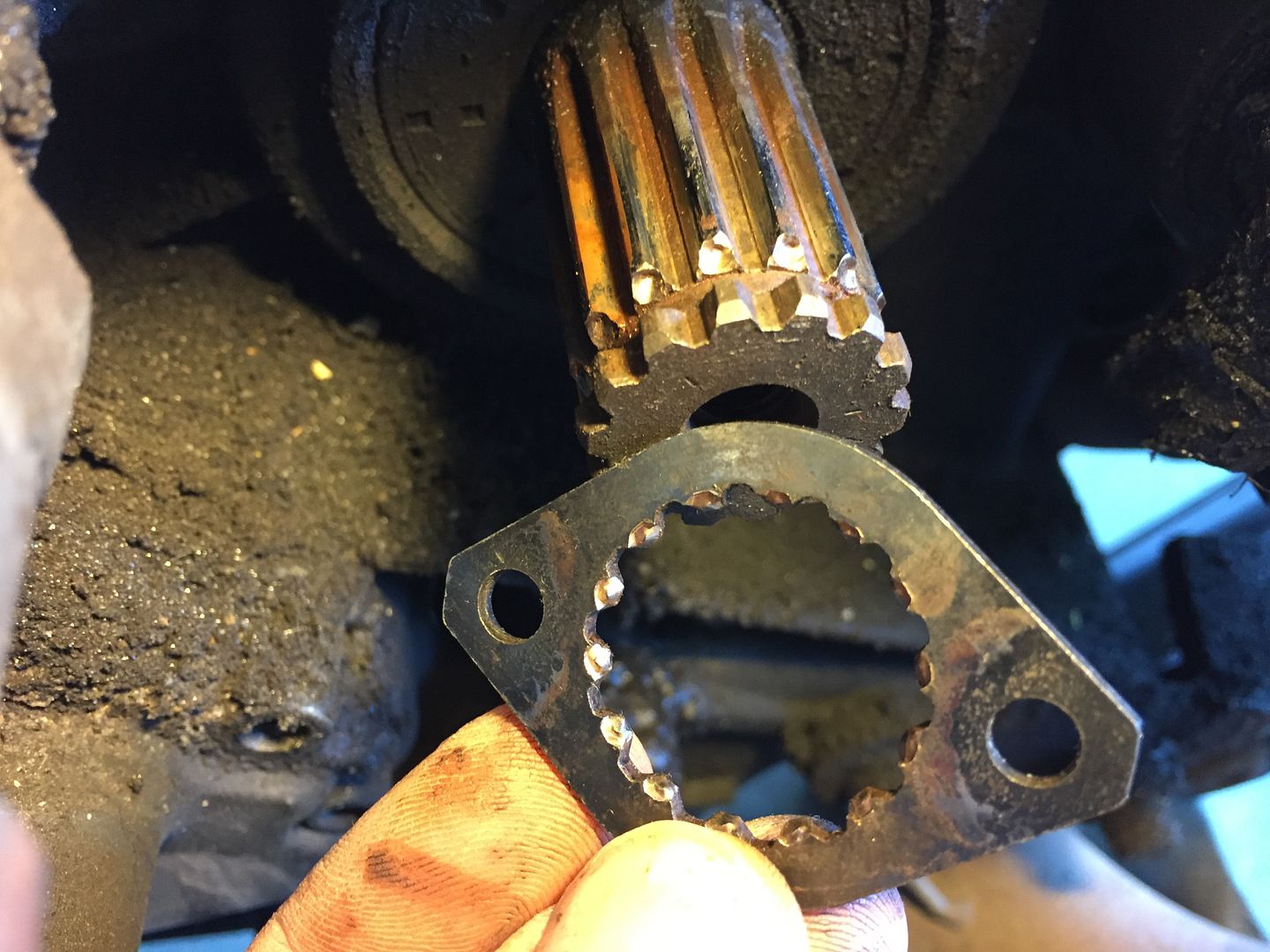

Worn Sprocket washer and output shaft

How screwed am I?



I know the washers are a weak point, but even with a good washer, getting one to sit properly on that shaft is looking pretty shaky...

2000 Ducati ST2 Blue (The Rare Blue Duc), Join the AMA today!!
KB02 is offline
Sponsored Links
Advertisement

post #2 of 41 (permalink) Old Jun 4th, 2017, 10:55 am
Mr Leakered

tonered's Avatar

Join Date: Jul 2008
Location: Lynnwood, WA, USA
Posts: 8,749
Garage
Images: 25
Yeah. Your output shaft is looking pretty rough. The hole in it is threaded. You could get a machine shop to fab a cap with the proper depth (unsplined) and hole pattern to match the retainer. With a bolt through the middle, the sprocket would be fixed in place. This would be used in conjunction with a retainer.

Heck, even a plate with with two spacers of the right length and longer retainer​ bolts could work.

Have a good one.

tony b
2001 ST4 - Thumper
2013 Ural GearUp (sold)
tonered is online now
post #3 of 41 (permalink) Old Jun 4th, 2017, 6:37 pm
Senior Member

Bryanc123's Avatar

Join Date: Dec 2016
Location: Kanab, Utah, USA
Posts: 153
Reminds me of how my lock washer looked on my thread "Counter shaft lock washer failure". I can attest to how easy it is to have happen when you're not aware of the need to replace it every time the counter shaft sprocket is replaced and to keep an eye on it in case. Apparently, mine had not been replaced like it should have been and I wasn't aware of a problem until I saw the sprocket was completely loose.

1026cc Fast by Ferracci 2003 ducati st4s
Bryanc123 is offline

post #4 of 41 (permalink) Old Jun 4th, 2017, 9:17 pm
Lifetime Premium

grimah1w's Avatar

Join Date: Jun 2006
Location: Woodlawn, TN, USA
Posts: 682
Garage
Images: 3
I'd try a new plate, new screws...fly it and watch it. Doesn't look like two plates would fit in the enlarged gap...


Vinnie R.
Tennessee

2004 998s FE
2002 ST4s
grimah1w is offline
post #5 of 41 (permalink) Old Jun 4th, 2017, 10:10 pm
Senior Member

Bryanc123's Avatar

Join Date: Dec 2016
Location: Kanab, Utah, USA
Posts: 153
This thread made me decide to look at mine, am I glad did! Lock washer was already pretty much worn out after about 4k miles due to the extra float my sprocket now has on the spline. If I had let it go another 1k, it probably would would have come completely loose like it had before. Seriously considering coming up with something along the lines of what Tonered suggested. I can see the problem only getting worse the longer it goes as is.

1026cc Fast by Ferracci 2003 ducati st4s

Last edited by Bryanc123; Jun 5th, 2017 at 7:59 am.
Bryanc123 is offline
post #6 of 41 (permalink) Old Jun 5th, 2017, 8:27 am
Senior Member

steve__d's Avatar

Join Date: Oct 2011
Location: Pennsyltucky, PA, USA
Posts: 1,137
Can't stress enough the need to lube the spline/sprocket. Use Anti-seize as it'll last longer vs grease. Review every 5-6k miles. Re-apply grease at that point.

Given rust on shaft, I doubt it had grease or lube at any time in recent past. S

2002 ST4s, Carrozzeria, Traxxion Dynamics, AL FW,
2003 ST4$ in second fastest color, Red !!
steve__d is offline
post #7 of 41 (permalink) Old Jun 5th, 2017, 9:35 am
Mr Leakered

tonered's Avatar

Join Date: Jul 2008
Location: Lynnwood, WA, USA
Posts: 8,749
Garage
Images: 25
Wear between the countershaft splines and sprocket splines is very rare on the STs. BMWs (and Urals) have that problem though. What we are seeing here is wear of the shaft due to the locking plate which is opening up the securing groove.

As noted by Brad (bikeboy) in the past, this is the wrong application for what you are suggesting. If you feel that you must apply something on the splines, this is the right product:
https://www.amazon.com/Honda-08798-9.../dp/B0083BWUYW

Have a good one.

tony b
2001 ST4 - Thumper
2013 Ural GearUp (sold)
tonered is online now
post #8 of 41 (permalink) Old Jun 5th, 2017, 9:57 am
Senior Member

steve__d's Avatar

Join Date: Oct 2011
Location: Pennsyltucky, PA, USA
Posts: 1,137
You misinterpret my comment re lubrication and the intended purpose. It allows unimpeded float of the sprocket on the counter shaft splines. Restriction of the sprocket with the lock ring in wrong position will lead to such excessive and premature wear. Race cars (stock car types) using the Ford 9 inch clean and lube the splines to avoid lapping and excessive wear on the drive plates. Common to do to avoid the wear issue.

HAGO

Steve

2002 ST4s, Carrozzeria, Traxxion Dynamics, AL FW,
2003 ST4$ in second fastest color, Red !!
steve__d is offline
post #9 of 41 (permalink) Old Jun 5th, 2017, 10:17 am
Mr Leakered

tonered's Avatar

Join Date: Jul 2008
Location: Lynnwood, WA, USA
Posts: 8,749
Garage
Images: 25
Sorry, but I did not misinterpret.

This older style of locking the sprocket is great for maintenance and quick changes, but not so good for longevity. There is very little inboard / outboard play in the as-new setup. Play is introduced as the retainer and shaft eat into each other, esp when the retainer is badly worn as can be seen as steps in the original pic. The 2004+ STs have the more standard, high torque nut to lock down the sprocket laterally. Inboard / outboard play is not a good thing for wear, this is not a slip joint.

Ancient nascar rear differentials have little to do with our application.

A supplementary keeper with the depth that holds the sprocket in place laterally will, however minimally, reduce wear. Given the amount of wear in the OP, something is needed or a total rebuild will be needed.

Have a good one.

tony b
2001 ST4 - Thumper
2013 Ural GearUp (sold)
tonered is online now
post #10 of 41 (permalink) Old Jun 5th, 2017, 12:50 pm
Senior Member

Bryanc123's Avatar

Join Date: Dec 2016
Location: Kanab, Utah, USA
Posts: 153
Quote:
Originally Posted by tonered View Post
Sorry, but I did not misinterpret.

This older style of locking the sprocket is great for maintenance and quick changes, but not so good for longevity. There is very little inboard / outboard play in the as-new setup. Play is introduced as the retainer and shaft eat into each other, esp when the retainer is badly worn as can be seen as steps in the original pic. The 2004+ STs have the more standard, high torque nut to lock down the sprocket laterally. Inboard / outboard play is not a good thing for wear, this is not a slip joint.

Ancient nascar rear differentials have little to do with our application.

A supplementary keeper with the depth that holds the sprocket in place laterally will, however minimally, reduce wear. Given the amount of wear in the OP, something is needed or a total rebuild will be needed.

Have a good one.

I agree based on what I've seen with my setup, very similar to the OP's without quite the amount of damage to the splines. The overall excessive float on the spline hasn't done anything any favors.
tonered likes this.

1026cc Fast by Ferracci 2003 ducati st4s
Bryanc123 is offline
